Description


Machine-mounted sleeper layer for precise and efficient sleeper placement. A telescopic frame makes the sleeper layer compact and safe to use. A unique, patented linkage system ensures that the center of gravity does not change during sleeper spreading. SL400/SL450 handles four sleepers at a time, and SL550 handles five sleepers at a time.

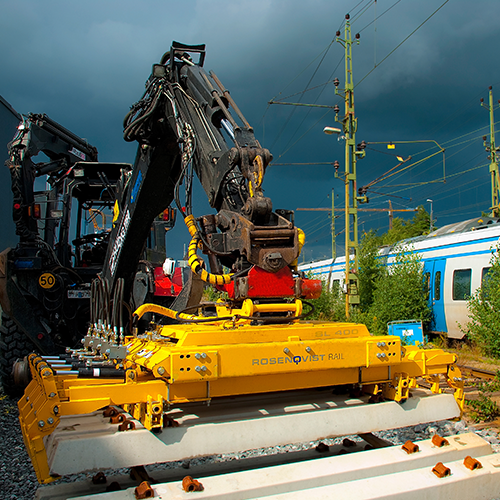

SL400 has hooks that clamps and lifts sleepers from underneath. Suitable for all types of sleepers. Has a rotator as an accessory.

SL450/SL550 clamp over the sleeper end and are suitable for sleepers with a smooth surface at the sleeper ends. Can grip sleepers even if they are on uneven ground, making it more flexible. With a tilt rotator on the carrier machine, flexibility and efficiency are further increased during sleeper installation.

Benefits

  • Compact

    The telescopic frame construction makes the sleeper layer compact and safe to maneuver.

  • Flexible

    Easy to adapt and adjust to fit several different types of sleepers.

  • Unchanged center of gravity

    A unique, patented linkage system ensures that the center of gravity does not change during sleeper spreading.

Technical data

SL400

Number of sleepers: 4

Sleeper distance: 274-750 mm (cc)

Sleeper Length: On request

Lifting capacity: Max 1250 kg

Performance:

  • Excavator: Up to 60 m/h

  • Front end loader: Up to 40 m/h

Length: 1000-2585 mm

Width: 2705mm

Height: 655 mm

Weight: 820 kg

SL450

Number of sleepers: 4

Sleeper distance: 274-750 mm (cc)

Sleeper Length:

  • Standard 2490-2800 mm

  • Narrow: 2220-2530 mm

  • Broad: 2490-3000 mm

Lifting capacity: Max 1800 kg

Performance:

  • Excavator: Up to 60 m/h

  • Front end loader: Up to 40 m/h

Length: 1120-2640 mm

Width: 2855-3170 mm

Height: 780 mm

Weight: 1060 kg

SL550

Number of sleepers: 5

Sleeper distance: 250-762 mm (cc)

Sleeper Length:

  • Standard 2410-2800 mm

  • Narrow: 2145-2530 mm

  • Broad: 2410-3000 mm

Lifting capacity: Max 2250 kg

Performance:

  • Excavator: Up to 90 m/h

  • Front end loader: Up to 60 m/h

Length: 1790-3770 mm

Width:

  • Standard gauge: 2855-3170 mm

  • Broad gauge: 2965-3335 mm

Height: 945 mm

Weight: 1670 kg (with bracket)

Additional Information

SB40 is delivered with CE marking according to the standard:

  • Machinery directive: 2006/42/EC

  • Safety of machinery - General principles for design Risk assessment and risk reduction: EN ISO 12100:2010

  • Safety of machinery – Control systems: EN ISO 13849-1:2015
