Sleeper Replacer SB60 SKR
Contact us
Description

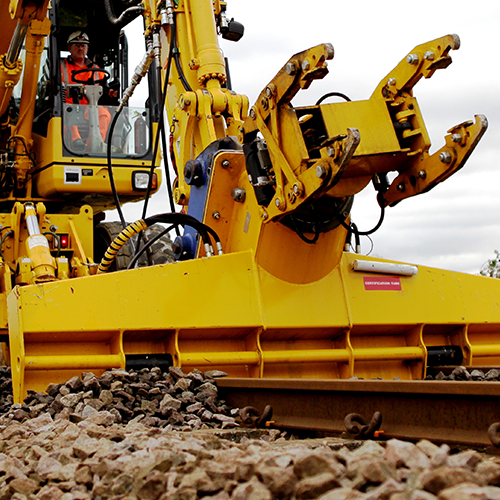

Sleeper Replacer SB60 SKR is a tool developed for safe and efficient work during sleeper replacement. SB60 SKR is equipped with a stronger rotor to better withstand stresses. The rotor enables the operator to replace sleepers from both the center and the side of the track.
SB60 SKR is compatible with most types of sleepers and can be ordered to fit different track gauges from 1000 mm to 1600 mm.
Our sleeper replacers can be complemented with buckets for excavating ballast or wet materials. Optionally, an Automaster is also available for Fastclip installation.
Accessories
Automaster
Ballast buckets
Wet material buckets
Benefits
-
Flexible
Rotor for enabling the replacement of sleepers from both the center and the side of the track.
-
Versatile
Thanks to the ability to mount buckets on the blade and an Automaster for fastening, only one tool is needed for a successful outcome.
Technical data
SB60 STD 1000 mm
Gauge: 1000 mm
Length: 1545 mm
Width: 2240 mm
Height: 1695 mm
Weight: 995 kg
Rail Type: 50 kg/m, 60 kg/m
SB60 STD 1067 mm
Gauge: 1067 mm
Length: 1545 mm
Width: 2305 mm
Height: 1695 mm
Weight: 1080 kg
Rail Type: 50 kg/m, 60 kg/m
SB60 STD 1435 mm
Gauge: 1435 mm
Length: 1545 mm
Width: 2590 mm
Height: 1695 mm
Weight: 1125 kg
Rail Type: 50 kg/m, 60 kg/m
SB60 STD 1520 mm
Length: 1520 mm
Längd: 1545 mm
Width: 2755 mm
Height: 1695 mm
Weight: 1145 kg
Rail Type: 50 kg/m, 60 kg/m
SB60 STD 1600 mm
Length: 1600 mm
Längd: 1545 mm
Width: 2840 mm
Height: 1695 mm
Weight: 1160 kg
Rail Type: 50 kg/m, 60 kg/m
Additional Information
SB60 STD is delivered with CE marking according to the standard:
Machinery directive: 2006/42/EC
Safety of machinery - General principles for design Risk assessment and risk reduction: EN ISO 12100:2010
Safety of machinery – Control systems: EN ISO 13849-1:2015
Product Approval:
Network Rail: PA05/01477
