Description

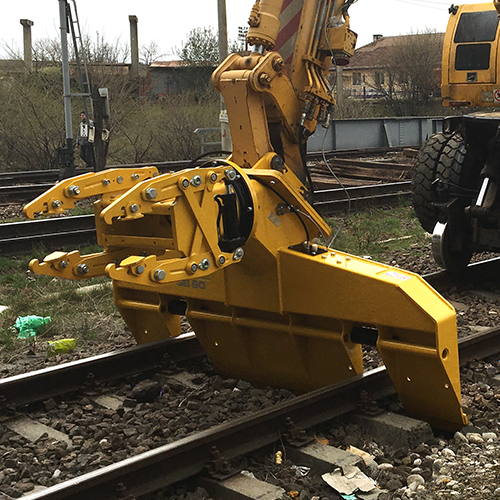

SB60 – Flexible Sleeper Replacer for All Needs
Streamline your sleeper replacement work with a machine that combines strength, precision, and safety. The SB60 comes in two rotor versions – standard and heavy-duty worm screw – and can be fitted with the Automaster option for simultaneous fastening in the same work cycle.

SB60 – Sleeper Replacement with Optional Automaster for Fastening

The SB60 is a versatile and robust sleeper replacer designed to deliver high productivity, safety, and flexibility. Built for both railway construction and maintenance, it is engineered to replace sleepers quickly and safely – even in restricted spaces such as stations, tunnels, and embankments.

The SB60 is available in two rotor configurations:

  • SB60 STD (Standard Rotor) – Proven design for replacing sleepers from both the track center and side. Best suited for excavators in the 6–9 ton range.

  • SB60 SKR (Worm Screw Rotor) – Heavy-duty design with a robust worm screw rotor for replacing sleepers from both the track center and side. Recommended for excavators in the 9–12 ton range.

For projects requiring fastening, the Automaster is available as an option. This unit allows the installation of Pandrol FE and FC clips with high precision, directly after sleeper replacement, reducing the need for additional machines and personnel on track.

  • Accessories

  • Automaster clipping device

  • Ballast buckets

  • Wet material buckets


Benefits

  • Flexible

    Compact design for work in confined spaces, with a rotor that enables sleeper replacement from both the track center and side.

  • Robust

    Durable and proven construction for long service life and high operational reliability.

  • Compatible

    Available for multiple track gauges and compatible with most types of sleepers.

  • Optional

    Can be equipped with buckets for excavating wet spots or removing contaminated ballast.

Technical data

SB60 1000 mm

Gauge: 1000 mm

Length: 1545 mm

Width: 2240 mm

Height: 1695 mm

Weight: 945 kg (Standard rotor) 995 kg (Worm screw rotor)

Rail Type: 50 kg/m, 60 kg/m

SB60 1067 mm

Gauge: 1067 mm

Length: 1545 mm

Width: 2305 mm

Height: 1695 mm

Weight: 1030 kg (Standard rotor) 1080 kg (Worm screw rotor)

Rail Type: 50 kg/m, 60 kg/m

SB60 1435 mm

Gauge: 1435 mm

Length: 1545 mm

Width: 2590 mm

Height: 1695 mm

Weight: 1075 kg (Standard rotor) 1125 kg (Worm screw rotor)

Rail Type: 50 kg/m, 60 kg/m

SB60 1520 mm

Length: 1520 mm

Längd: 1545 mm

Width: 2755 mm

Height: 1695 mm

Weight: 1095 kg (Standard rotor) 1145 kg (Worm screw rotor)

Rail Type: 50 kg/m, 60 kg/m

SB60 1600 mm

Length: 1600 mm

Längd: 1545 mm

Width: 2840 mm

Height: 1695 mm

Weight: 1110 kg (Standard rotor) 1160 kg (Worm screw rotor)

Rail Type: 50 kg/m, 60 kg/m

Additional Information

SB60 STD is delivered with CE marking according to the standard:

  • Machinery directive: 2006/42/EC

  • Safety of machinery - General principles for design Risk assessment and risk reduction: EN ISO 12100:2010

  • Safety of machinery – Control systems: EN ISO 13849-1:2015

Product Approval:

Network Rail: PA05/01477
