Description

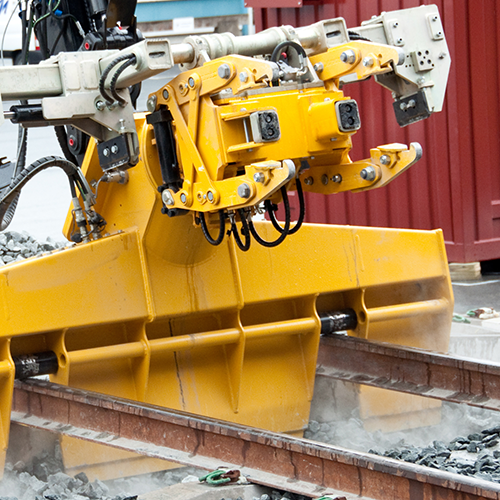

The SB60 Automaster is a high-performance sleeper replacer designed for safe and efficient sleeper replacement and Fastclip installation in a single integrated operation. Operated directly from the excavator cabin, the SB60 Automaster eliminates the need for additional personnel within the track area, significantly reducing the risk of work-related injuries.

Equipped with a robust worm screw rotator, the unit enables precise sleeper handling from both the center and side of the track — ideal for complex environments such as tunnels, platforms, and embankments. Its compact and versatile design ensures compatibility with most sleeper types and track gauges ranging from 1000 mm to 1600 mm.

To extend its functionality, the SB60 Automaster can be equipped with buckets for ballast excavation and removal of wet or contaminated materials, making it a flexible tool for multiple tasks in rail maintenance.

  • Accessories

  • Ballast buckets

  • Wet material buckets


Benefits

  • Safe and Efficient Operation

    Combining sleeper replacement and clip installation in a single process reduces the need for on-track personnel, minimizing the risk of work-related accidents and ensuring a safer work environment.

  • Integrated Clip Installation (Automaster)

    The built-in Automaster system allows for precise Pandrol Fastclip installation during sleeper replacement, improving both speed and safety in track maintenance operations.

  • Flexible Rotator Design

    A durable worm screw rotator enables the replacement of sleepers from both the center and the side of the track, allowing for efficient operation even in confined areas such as tunnels and platforms.

  • Highly Versatile Tool

    With the ability to equip the unit with buckets for ballast or wet material excavation and an integrated clipping system, the SB60 Automaster performs multiple tasks using a single attachment — simplifying logistics and reducing the need for tool changes.

Technical data

SB60 AM 1435 mm

Gauge: 1435 mm

Length: 1545 mm

Width: 2590 mm

Height: 1695 mm

Weight: 1335 kg

Rail Type: 50 kg/m, 60 kg/m

SB60 AM 1600 mm

Length: 1600 mm

Längd: 1545 mm

Width: 2840 mm

Height: 1695 mm

Weight: 1370 kg

Rail Type: 50 kg/m, 60 kg/m

Additional Information

SB60 Automaster is delivered with CE marking according to the standard:

  • Machinery directive: 2006/42/EC

  • Safety of machinery - General principles for design Risk assessment and risk reduction: EN ISO 12100:2010

  • Safety of machinery – Control systems: EN ISO 13849-1:2015

Product Approval:

Network Rail: PA05/04237
