Rail Trailer RT 3235
Contact us
Description

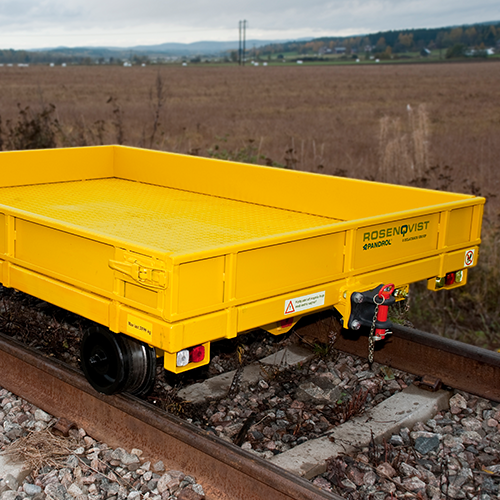

Rail trailer RT3235, for transporting tools and materials during work and transportation on railways. The trolley is connected to the towing vehicle with the included drawbar. Pressure for brake release and electrical connection for lighting are taken from the towing vehicle. The machine operator selects the travel direction indicators using a power switch on the trolley. The short length and low weight make RT3235 an accessory to always have on hand and a convenient aid in the work. The trolley can be ordered with or without sideboards
Benefits
-
Detachable sideboards
The sideboards can be removed to facilitate the loading and unloading of equipment.
-
Compact and lightweight
The short length and low weight make RT3235 an accessory to always have on hand and a convenient aid in the work.
-
Robust design
A robust and durable design makes the trolley cost-effective over an extended period of use.
Technical data
RT3235 without sideboards
Gauge: 1435 mm
Length: 2500 mm
Width: 1800 mm
Height (platform): 600 mm
Weight: 700 kg
Max load: 3500 kg
RT3235 med flaklemmar
Gauge: 1435 mm
Length: 2500 mm
Width: 1800 mm
Height (platform): 600 mm
Weight: 820 kg
Max load: 3500 kg
Additional Information
RT3235 is delivered with CE marking according to the standard:
Machinery directive: 2006/42/EC
Electromagnetic compatibility (EMC): 2014/30/EU
Safety of machinery – General principles for design.
Risk assessment and risk reduction: EN ISO 12100:2010Safety of machinery – Electrical equipment: SS-EN 60204-1
Safety of machinery – Control systems: EN ISO 13849-1:2015
Railway applications - Track - Trailers associated equipment
Part 1: Technical requirements for running and working: SS-EN 15954-1
Part 2: General safety requirements: SS-EN 15954-2
