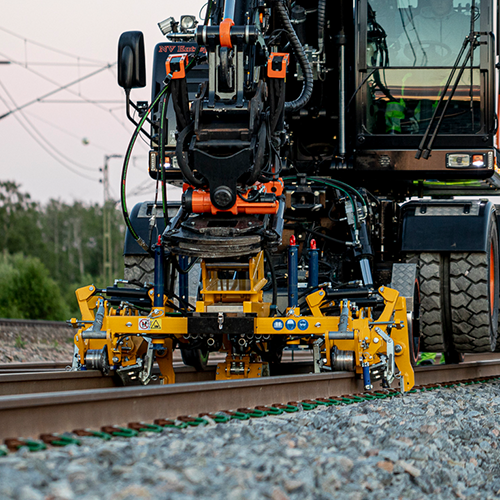

Clip Driver CD300IQ / CD300 EC
Contact us
Description
CD300 IQ clips/unclips up to 40 sleepers per minute and is developed with a focus on high productivity in the fastening and unfastening of Pandrol Fastclip FC and FE. CD300 EC is specifically designed for fastening and unfastening e-clip.
CD300 is an advanced version based on the proven technology used for CD400. The tools fold up during transport, minimizing the risk of collision with the shoulder when passing through switches and joints.
The intelligent control system logs the number of work cycles, monitors, and controls the entire fastening/unfastening cycle. The machine operator controls CD300IQ via the display and maneuvers it using the joystick. The display also provides information about the machine's status.
Both CD300IQ and CD300EC are easy to set up on the track and adjust to fit the rail height. Guide rollers ensure that the tool is centered over the rail. The low weight makes CD300 ideal for carrier machines from 6 tons and above.
Benefits
-
Intelligent control system
The intelligent control system simplifies operation and prevents incorrect usage. The system's automation ensures correct fastening and reduces the risk of damage to the shoulder and clips.
-
Informative display
Information about the number of installed clips and operating hours allows for monitoring during work. Error code display simplifies troubleshooting in case of a potential system malfunction.
-
Low weight
The machine's low weight makes it suitable for machines from 6 tons and above, as well as easier to handle during setup and dismantling.
-
Reduced risk of injuries
The risk of damage to the shoulder, clips, and the machine is minimized as the tools can be folded up when passing through, for example, switches and joints.
Technical Data
CD300 IQ
Clip: FC,FE
Clipping: 4 clips per cycle
Unclipping: 4 clips per cycle
Capacity: Up to 40 sleepers per minute
Width: 2250 mm
Length: 1730 mm
Height: 1030 mm
Weight: 990 kg
Wheels: Ø 125 mm
Gauge: 1435 mm
CD300 EC
Clip: E-clip, PR clip
Clipping: 4 clips per cycle
Unclipping: 2 clips per cycle
Capacity: Up to 20 sleepers per minute
Width: 2250 mm
Length: 1730 mm
Height: 1030 mm
Weight: 840 kg
Wheels: Ø 125 mm
Gauge: 1435 mm
Accessories
Machine bracket: S45, S50, S60
Lifting brackets for fork lift
Bluetooth connection between driver´s cab and tool (only IQ)
Remote controlled joystick
Additional Information
CD200IQ is delivered with CE marking according to the standard:
Machinery directive: 2006/42/EC
Electromagnetic compatibility (EMC): 2014/30/EU
Safety of machinery - General principles for design Risk assessment and risk reduction: EN ISO 12100:2010
Safety of machinery – Electrical equipment - EN 60204-1
Safety of machinery – Control systems: EN ISO 13849-1:2015
Product Approval:
SNCF: AGT 24 002
